Description

FUNCTION:

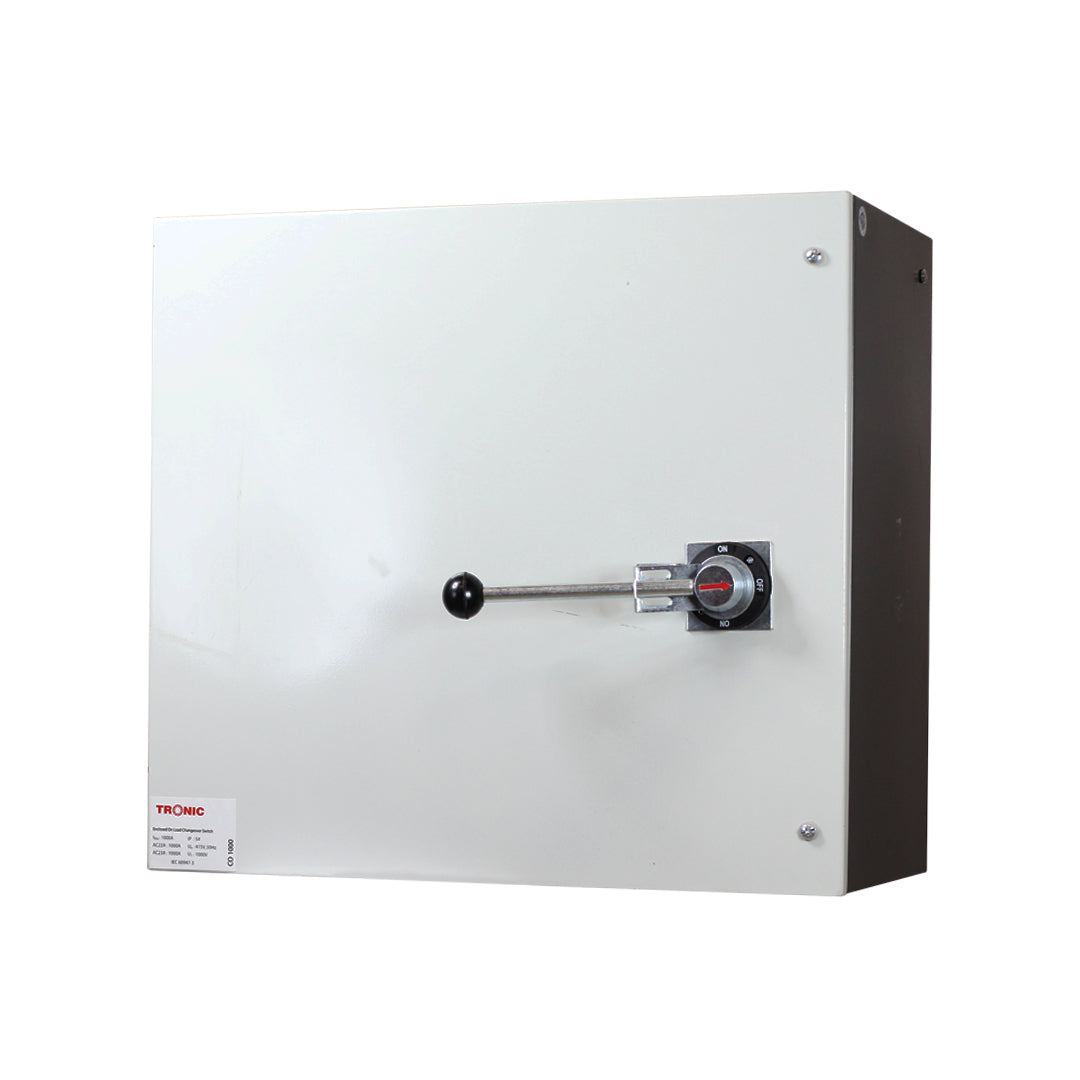

On Load manual changeover between 2 sources.
Emergency Breaking
Selection between two loads
Safe isolation of downstream loads for maintenance purpose
Additional Information
Colour Grey
Amps 100A
Voltage AC 415
Item Dimensions H 350mm x W 455mm
Material Aluminium
General Characteristics:
CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A
CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A
2 External earthing points on each side
Wall mounted with 4 bolts
Door locking system allows opening of door only in OFF position
Incoming & outgoing easily interchangeable at site
Coating of epoxy polyester powder 70 micron
Removable plate top & bottom
Door with solid hinges
Warranty 1 year
Application switching from one power source to another
